High-pressure pumps of common rail engines ensure steady and precise fuel delivery to the engine under all conditions. However, these pumps face a formidable challenge: the vibrations and excitations inherent in engine operation. Over time, these forces can lead to wear and fatigue, compromising pump performance and engine efficiency. A viscous damper is a compact yet effective solution to protect these critical components.
The Role of High-Pressure Pumps in Common Rail Engines
High-pressure common rail pumps in large common rail engines deliver pressures of up to 2500 bar at a 30 liters per minute fuel volume. Their design and functionality are vital for achieving the precision required in modern diesel engines.
Typically, the pump is driven by a gear connected to the free end of the crankshaft or camshaft. This drive system is efficient, but also susceptible to torsional vibrations—oscillations in the rotational motion that can stress the pump’s internal components.
The Problem: Vibratory Stress and Fatigue
Torsional vibrations, if left unchecked, cause significant problems. These vibrations originate from the engine’s cyclic forces and can increase wear and fatigue in the moving parts of the pump. Over time, this leads to reduced efficiency, costly repairs, and potential downtime.
The Solution: A Compact Viscous Damper
A viscous damper is a proven technology to mitigate torsional vibrations. The damper consists of a housing containing a ring and viscous oil. When torsional vibrations occur, the ring inside the damper moves relative to the housing. This movement creates circumferential shear stress in the viscous oil, which dissipates the vibratory energy as heat. This process not only reduces vibrations but also protects the pump from excessive stress.
For high-pressure pumps like those large common rail engines, a specially designed viscous damper provides a perfect fit. With an outer diameter of just 8 cm and a weight of just 1 kg, it is compact enough to integrate seamlessly into the system while delivering robust performance.

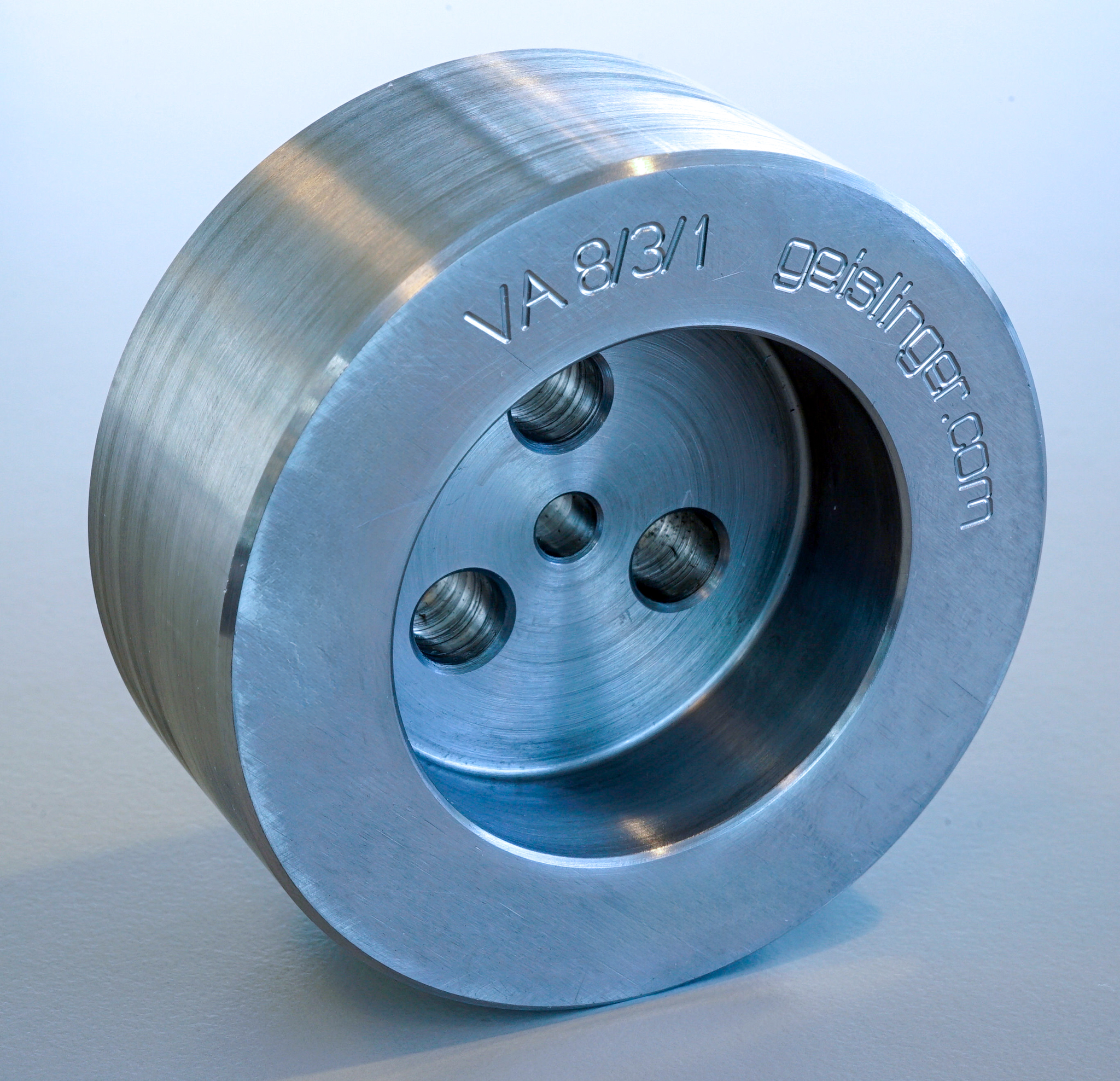

Picture 1: Injection Pump Damper with an outer diameter of just 8 cm and a weight of just 1 kg.
Benefits of the Viscous Damper
- Enhanced Durability: By minimizing wear and fatigue, the damper extends the pump's operational life.
- Maintenance free: The damper is designed to last the whole lifetime of the pump, without the need for maintenance.
- Compact Design: Its lightweight and small size make it suitable for integration without adding significant bulk.
- Thermal Dissipation: The damper effectively converts vibrational energy into heat, which can easily be transmitted over the housing.
Conclusion
As common rail engines become more advanced, the demands on their high-pressure pumps increase. Addressing torsional vibrations with innovative solutions such as viscous dampers ensures these pumps can perform reliably in extreme conditions. The compact yet powerful design of the damper exemplifies how engineering ingenuity can overcome complex challenges, paving the way for more efficient and durable engine systems.
By investing in technologies such as viscous dampers, engine manufacturers can protect vital components, improve performance, and reduce long-term operating costs.
